Front Elevation — 6' × 20'

Updated Jul 2026 · 2 doors (6' sliding + 36" hinged) · 3 windows · original 3-bay design retained below

Updated Design — July 2026

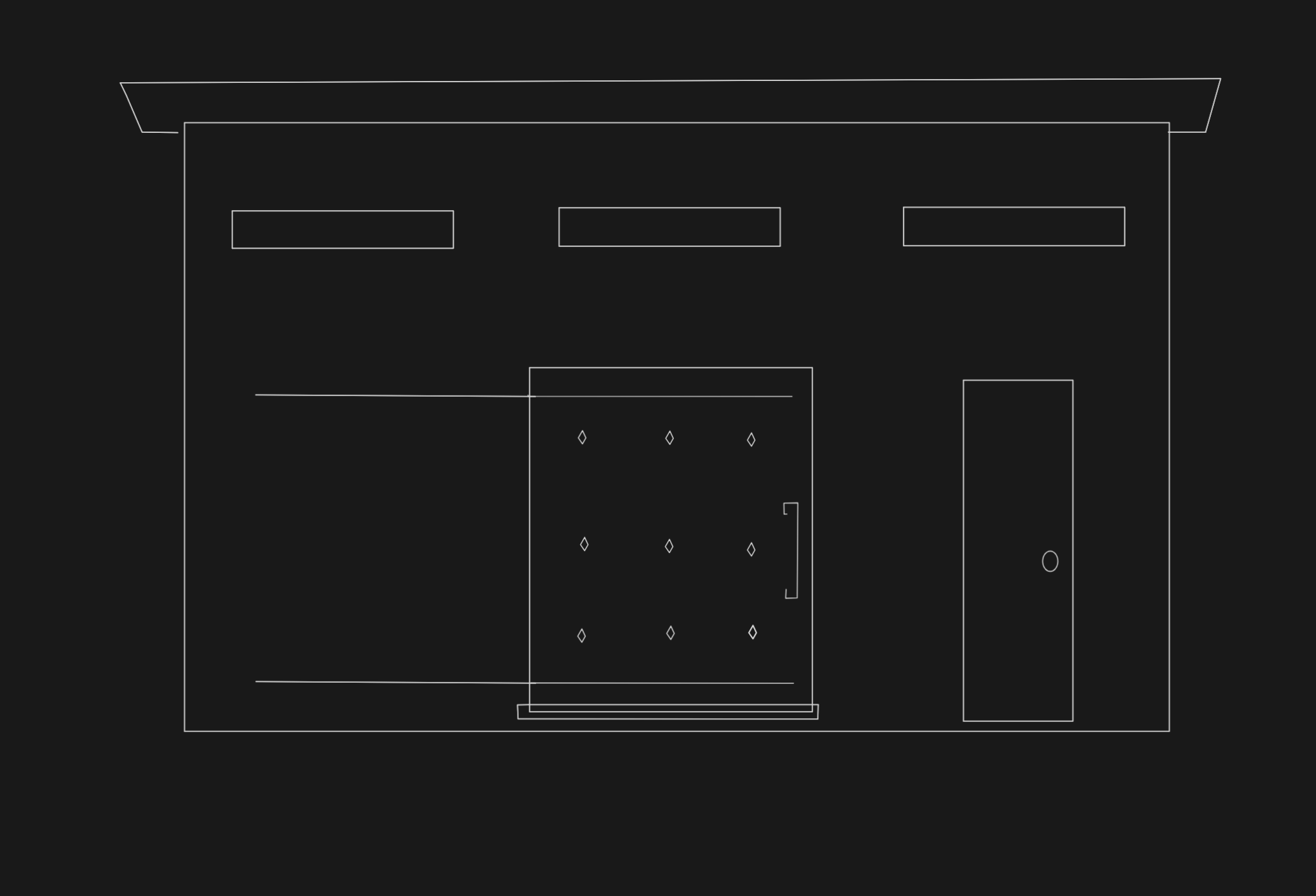

Updated front elevation sketch — 6' sliding door center, 36in door right, three ~4' windows across the top
Design changes from the original 3-bay layout:
  • Two doors instead of three — a 6' sliding door near the center and a 36" hinged door on the right.
  • Wall to the left of the sliding door is solid (no door there anymore).
  • Three windows, ~4' (48") wide each, evenly spaced across the top.
Original 3-Bay Design — superseded
20' - 0" 6' 8" 6' 8" 6' 8" 13' - 0" 7' - 0" 3' - 0" 6' - 0" 3' - 0" 1'×5' 1'×6' 1'×5' FRONT ELEVATION — 6' × 20' · ACX Plywood + 1×2 Battens · 3 Bays · Black Metal Roof
Wall height13' - 0"
Width~21' - 0" (TBD)
Bay width7' - 0" each
Single doors2' - 8" × 7' - 0"
Double door6' - 0" × 7' - 0"
Transoms1.5'×4' sides · 1.5'×6' center
Roof pitch6:12 mono-pitch
SidingLP SmartSide · charcoal gray · cedar fascia & doors
RoofingBlack corrugated metal
